Sourced from world-class forge shops in India for both open die as well asclosed die forgings. With in house die designing and manufacturing these forge shops are well equipped with state of the art laboratories and have a stringent in process inspection system, which assures a quality forging consistently. Over and above the ISO: 9001-2000 certification they are also PED & AD 2000 WO certified.

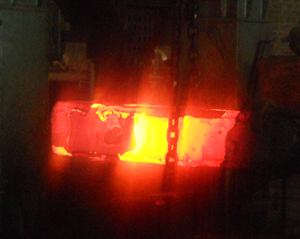

Open Die Forging	Max unit weight 4400 lbs (2000 kgs)
	Max Diameter 31.5” (800 mm)
	Mini Diameter 4” (100 mm)
	Max Length 118” (3000 mm)

Some of the special open die forgings we can supply are:

»	Forged Shafts
»	Forged Gear Blanks
»	Forged Crank Shafts

Forgings of various material specifications like carbon steel, alloy steel and stainless steel can be sourced complete with all material test certificates to your entire satisfaction.

For closed die forgings the product range is very comprehensive which includes connecting rods, gear blanks, double ball studs, gear shifter forks, bearing housings, flanges and many other products.

Closed Die Forging	Max unit weight 1760 lbs (800 kgs)
	Max Diameter 31.5” (800 mm)
	Mini Diameter 1” (25 mm)
	Max Length 78” (2000 mm)

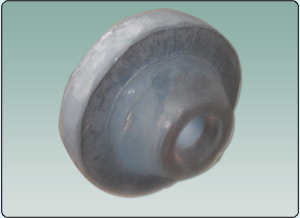

Heavy Duty Gear Blank

All forgings can be proof machined or finish CNC machined to your final machining dimensions.

A detailed sample approval process plan is implemented for new product development. Bulk production will only commence on approval of the sample or it’s dimensional report.

Ring Forging	Max Outer Dia 39” (1000 mm)
	Mini Inside Dia 4” (100 mm)
	Max Height 12” (300 mm)

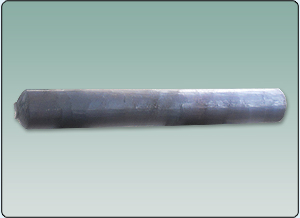

Dia. 16" Forged Shaft
